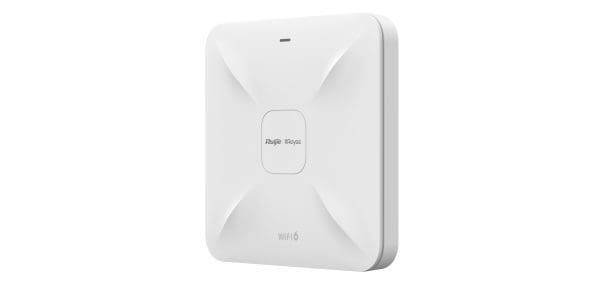

Reyee RG-RAP2260(G) Reyee Wi-Fi 6 1775Mbps Ceiling Access Point

$291.00+GST $320.10 INCL GST

Availability: 10+(In Stock)

Hospitality, Enterprise, Education, Government, Retail, etc.

Highlight Features

  • Wi-Fi 6, 1775Mbps, Dual-band, 2*GE Ports
  • Build ultra-fast network with Wi-Fi 6 technology.
  • Client connections over 500, better multi-user experience.
  • Provide higher practical performance for users as well.
  • Easily install extra AP with Reyee Mesh technology.
  • Set up Wi-Fi 6 network in 3 minutes with Ruijie Cloud APP.

24 in stock

SKU: RG-RAP2260(G) Category: Tags: , , ,
Loading...

Description

Ruijie Reyee RG-RAP2260 (G) is a high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios. The devices support 802.3at PoE and 12V DC local power supply. The dual Ethernet port design facilitates the expansion of third-party devices to meet the needs of more networking scenarios. Compliant with 802.lla/b/g/n/ac/ax Wi-Fi protocol, they all offer built-in omnidirectional antennas.

RG-RAP2260(G) supports MU-MIMO dual-stream technology, and it can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 574Mbps at 2.4GHz, 1201Mbps at 5GHz, and up to 1775Mbps per AP.

The coverage of RAP2260(G) is over 20 meters making them ideal choices for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc

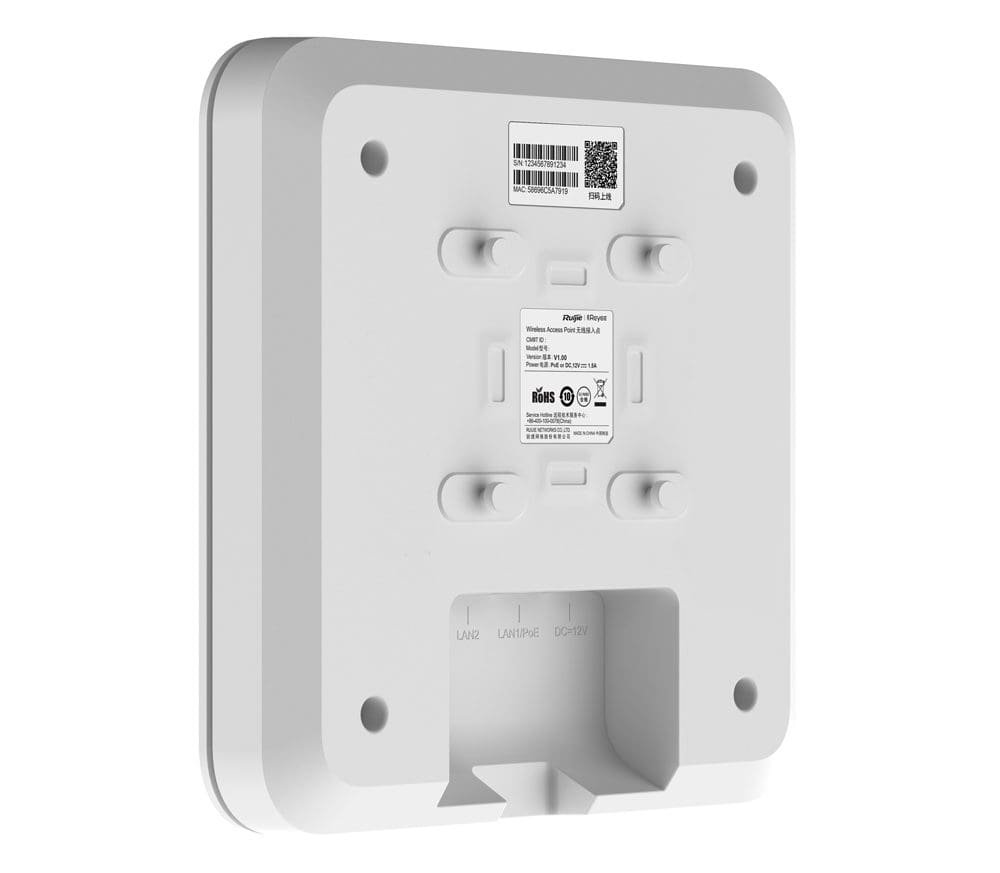

The industrial product design, iconic edges, and breathing light makes the product more recognizable. Adopting the non-directional installation design, the new mounting kits support various installation methods including on desktop, ceiling, wall, and pole, which improves the versatility of installation, simplifies the installation steps, reduces the installation difficulty, and greatly improves the installation experience of the device.

RG-RAP2260 (G) supports Ruijie’s self-developed Self-Organizing Network feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost, and time cost in the process of wireless network construction.

Users can perform comprehensive local management or remote management of the equipment in the entire network via the Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. Users can also share the network with a third party for network hosting and collaborative management, thereby achieving simpler, easier-to-use, more secure, and more convenient enterprise network operation and maintenance.



Model

RG-RAP2260(G)

Hardware Specifications

Radio Dual-stream dual-band
Protocol Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n
Operating Bands 802.11b/g/n/ax :2.4G ~ 2.4835GHz

802.11a/n/ac/ax : 5G:5.150~5.350GHz,5.725~5.850GHz (country specific)

Antenna Internal antennas(2.4G: 3dBi,5G: 3dBi)
Spatial Streams 2.4G 2x2MIMO  5G 2x2MIMO
Max Throughput Up to 574Mbps at 2.4G

Up to 1201Mbps at 5G

1.775Gbp per AP

Modulation OFDM:

BPSK@6/9Mbps,QPSK@12/18Mbps,16QAM@24Mbps,64QAM@48/54Mbps



DSSS:

DBPSK@1Mbps,DQPSK@2Mbps,

and CCK@5.5/11Mbps



MIMO-OFDM:

BPSK,QPSK,16QAM ,64QAM,256QAM and1024QAM



OFDMA

Receive Sensitivity 11b:

-96dBm(1Mbps),

-93dBm(5Mbps),

-89dBm(11Mbps)



11a/g:

-91dBm(6Mbps),

-85dBm(24Mbps),

-80dBm(36Mbps),

-74dBm(54Mbps)



11n:

-90dBm(MCS0),

-70dBm(MCS7),

-89dBm(MCS8),

-68dBm(MCS15)



11ac:

20MHz:-88dBm(MCS0), -63dBm(MCS9)

40MHz:-85dBm(MCS0), -60dBm(MCS9)

80MHz:-85dBm(MCS0), -60dBm(MCS9)



Wi-Fi 6:

80MHz:-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)

Maximum output power of the transmitter
(single stream)

2.4GHz(2.4~2.4835GHz):23dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz):23dBm

(country-specific,comply with local laws)

Adjustable Power

1dBm

Dimensions

194mm×194mm×35mm (excluding mounting kits)

Weight

0.56kg (excluding mounting kits)

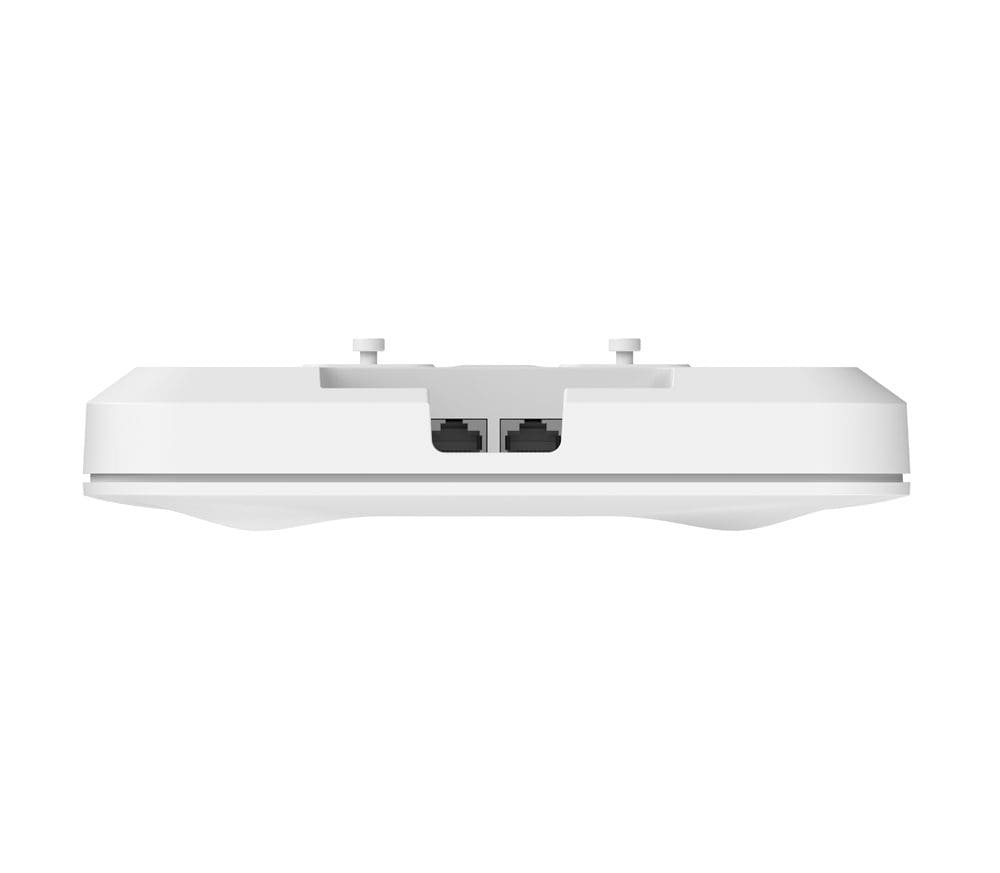

Service Ports 2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port NA
LED Indicator Single indicator (green light)
Power Supply Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning:802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)
Power Consumption ≤ 15.3W
Environment Operating temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Operating humidity: 5%~95%

(non-condensing)

Storage humidity: 5%~95%

(non-condensing)

Installation Ceiling/wall-mountable
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration Standard IEC61373
Radio Standard EN300 328, EN301 893
MTBF >400000H

Software Features

Operating Mode AP mode and routing mode
WLAN Maximum number of clients: 512
Recommended number of clients: 100
Up to 8 SSIDs
Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming Support Layer 2 and Layer 3 roaming
Security Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Support Black List / White List:

Maximum 256 rules per SSID

Maximum 1024 rules per AP

Routing Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform management features Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
