Ruijie Reyee RG-NIS3100-4GT2SFP-HP, 6-Port Gigabit Managed Industrial PoE+ Switch

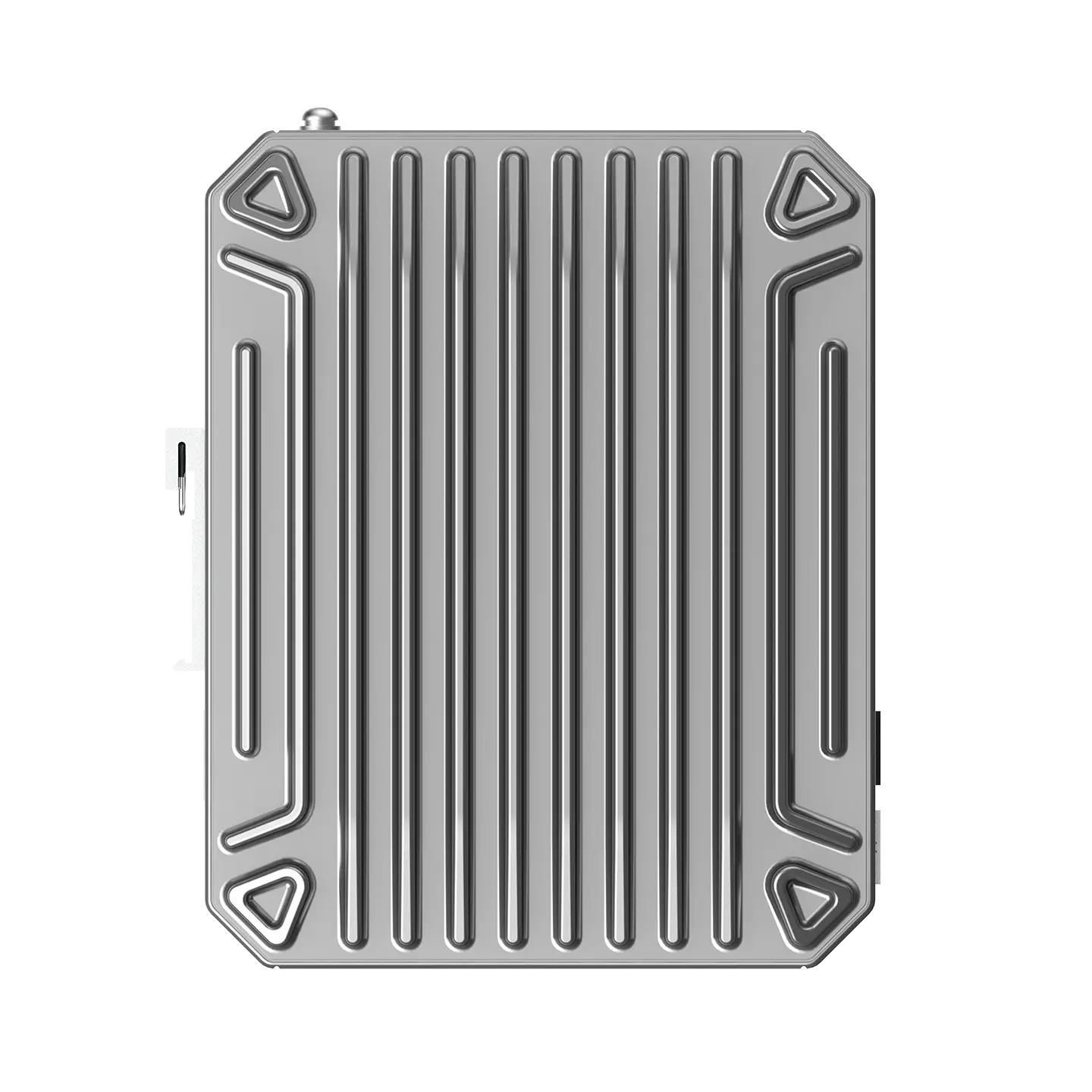

Ruijie Reyee RG-NIS3100-4GT2SFP-HP, 6-Port Gigabit Managed Industrial PoE+ Switch - Image 2

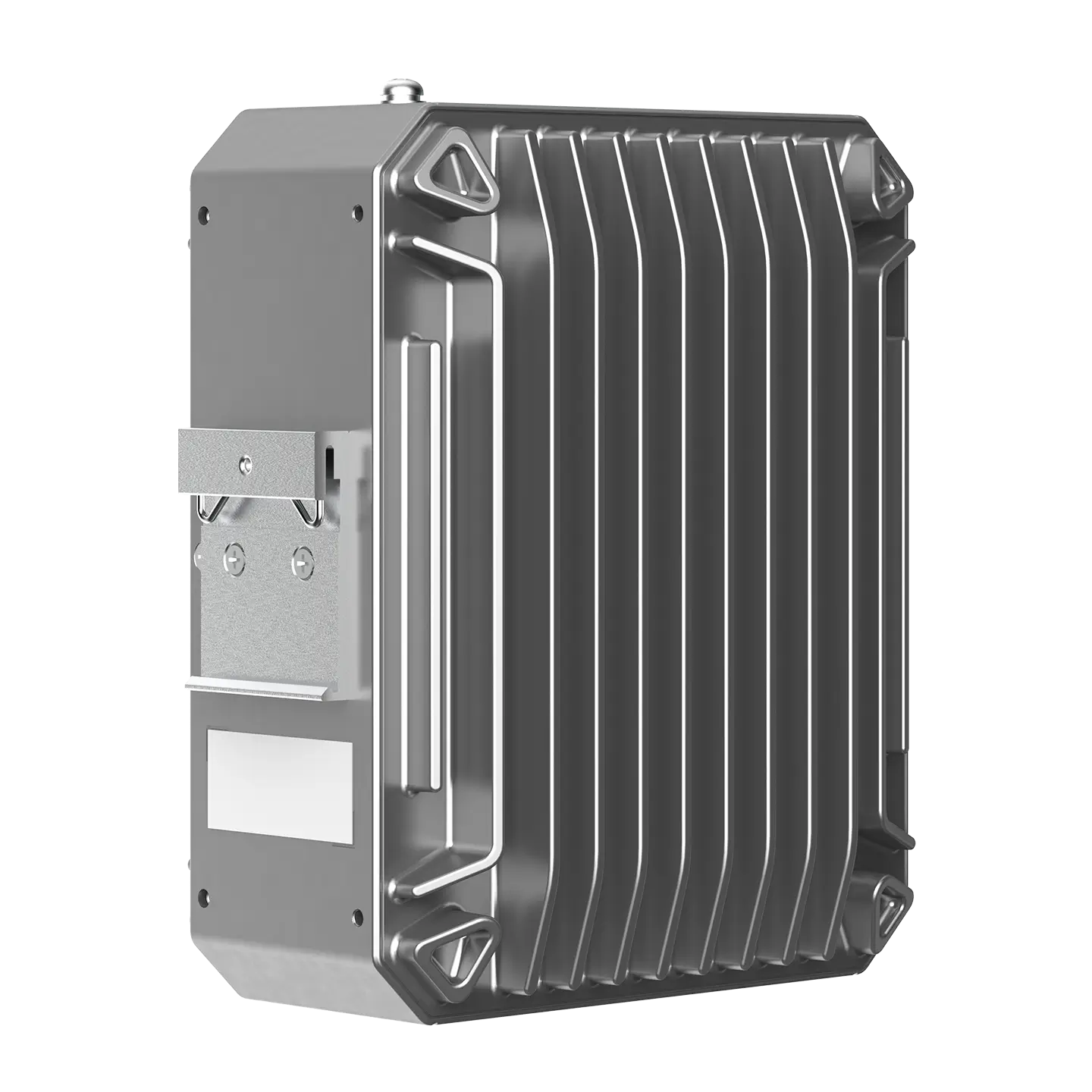

Ruijie Reyee RG-NIS3100-4GT2SFP-HP, 6-Port Gigabit Managed Industrial PoE+ Switch - Image 3

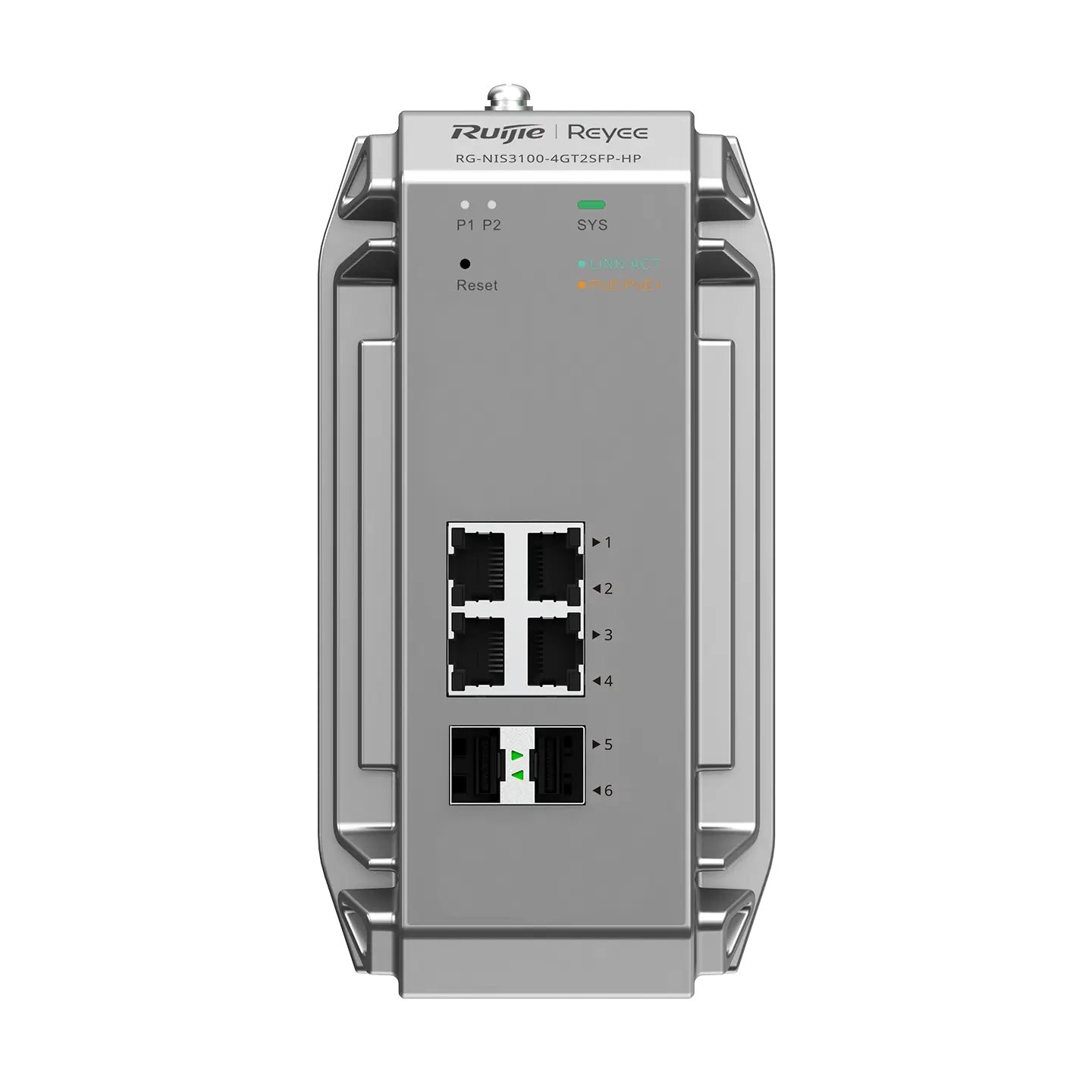

Ruijie Reyee RG-NIS3100-4GT2SFP-HP, 6-Port Gigabit Managed Industrial PoE+ Switch - Image 4

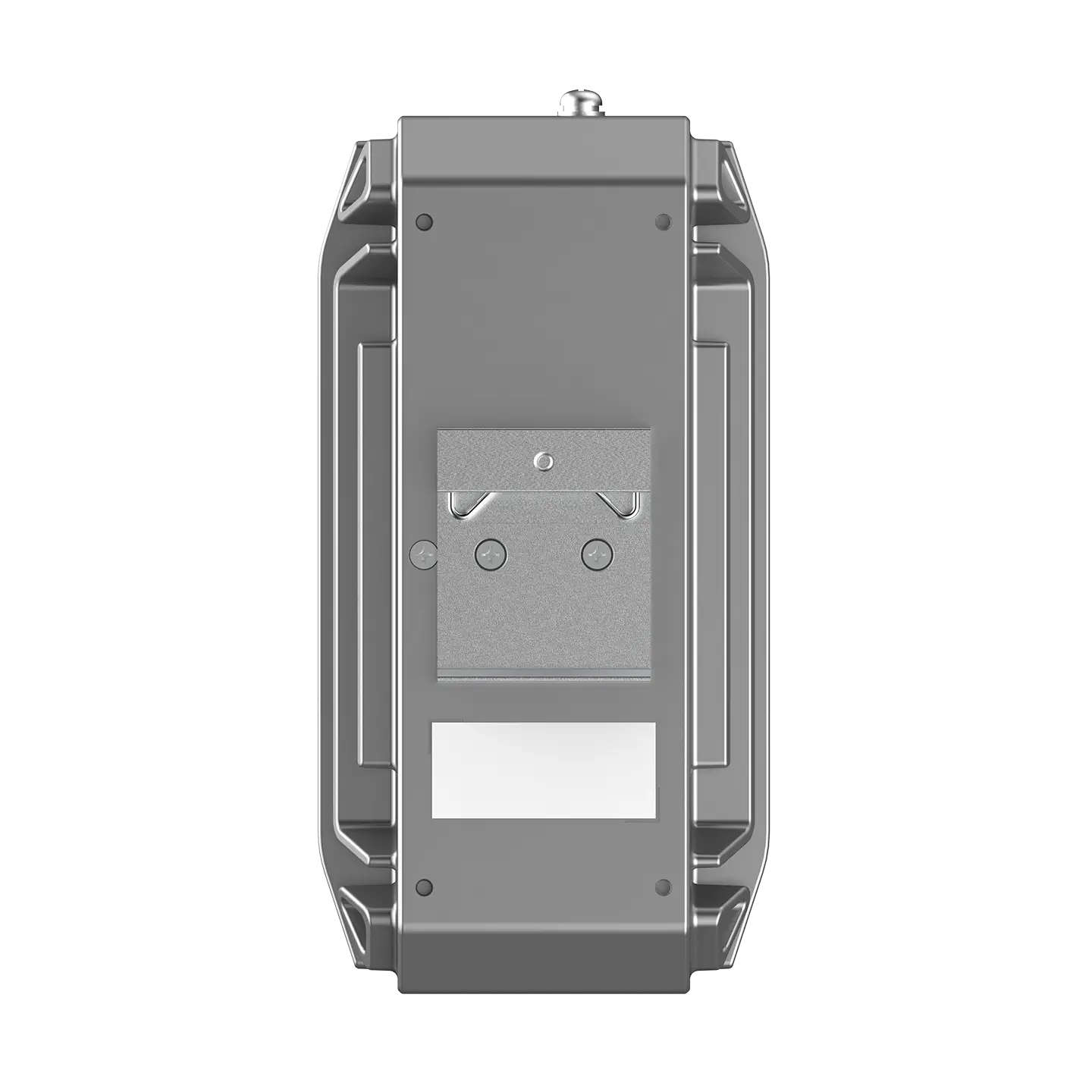

Ruijie Reyee RG-NIS3100-4GT2SFP-HP, 6-Port Gigabit Managed Industrial PoE+ Switch

Name: Ruijie Reyee RG-NIS3100-4GT2SFP-HP, 6-Port Gigabit Managed Industrial PoE+ Switch
Brand: Ruijie Reyee
SKU: RG-NIS3100-4GT2SFP-HP
Price: 936.00 AUD
Availability: OutOfStock

List price $1,029.60 inc GSTTradie? Apply for Trade Price. Approved accounts can see Trade Price and Tradie Specials after login.

(0 customer reviews)

6-Port Gigabit Managed Switch with 4 PoE+ Ports, 2 SFP Uplink Ports, designed for industrial, CCTV, factory, coastal and dusty environments.

4 × Gigabit PoE+ ports and 2 × Gigabit SFP uplink ports.
Up to 120 W PoE budget with a suitable 48 V DC power supply.
Industrial operating range from -40°C, with operation up to +80°C under specified ventilation conditions.
IP40 enclosure, 6 kV surge protection and 8 kV air-discharge ESD protection.
Managed Layer 2 features with ERPS, Ruijie Cloud and LAN self-organising network support.

Out of stock

Add To Wishlist

View Wishlist

SKU: RG-NIS3100-4GT2SFP-HP Categories: Network Switch, Reyee, Reyee Industrial Poe Switch Tags: 2x SFP Ports, 4x PoE+ Ports, Industrial Switch, Managed Switch, PoE switch, Ruijie Cloud

Key Specification

Network Ports	4 × 10/100/1000BASE-T	SFP Uplink Ports	2 × 1GE SFP
PoE Ports	4 × PoE/PoE+	PoE Budget	120 W
Switching Capacity	12 Gbps	Forwarding Rate	8.93 Mpps
Power Input	12–56 V DC	External Power Supply	Required and sold separately
Operating Temperature	-40°C to +65°C sealed; up to +80°C with specified forced ventilation	Protection	IP40; 6 kV port surge; 8 kV air ESD
MTBF	400,000 hours	Warranty	5 years
Jumbo Frame	9216 bytes (global configuration mode)	PoE Watchdog	Yes

PoE budget depends on the selected external DC power supply. A power adapter is not included and must be purchased separately.

Feature Images

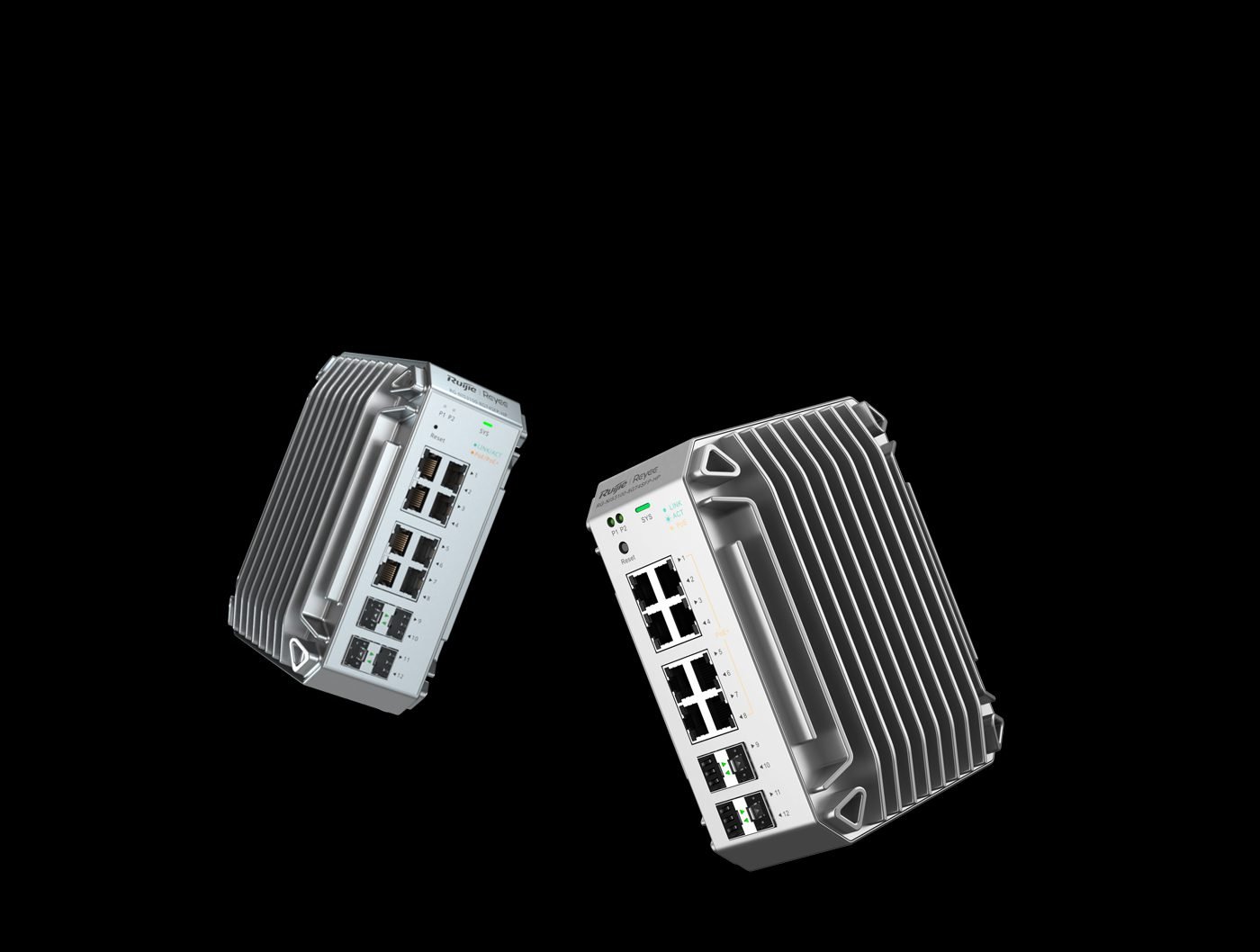

RG-NIS3100-4GT2SFP-HP promotional feature image 1

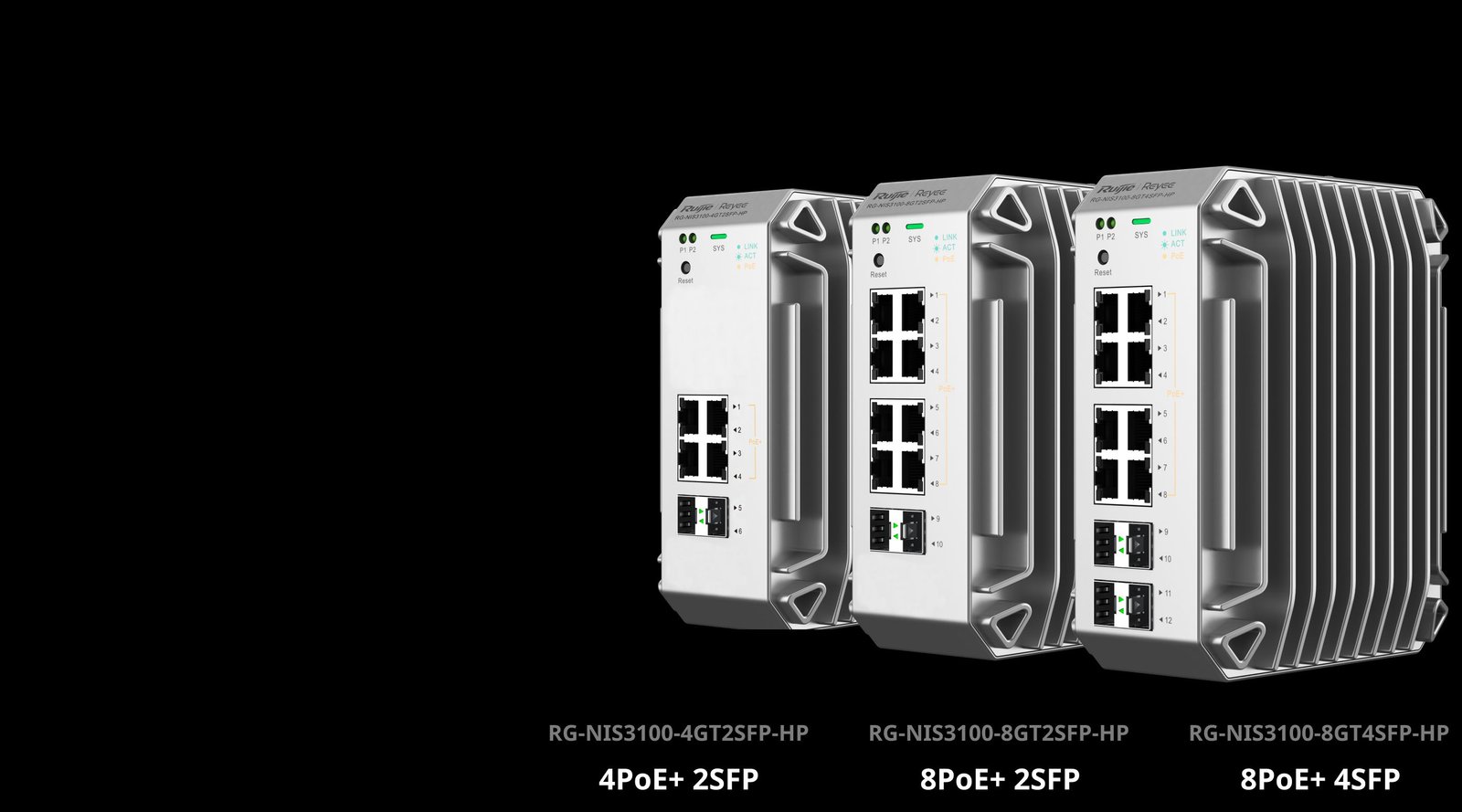

RG-NIS3100-4GT2SFP-HP promotional feature image 2

Product Resources

Product DatasheetOfficial product datasheet and technical documentation.

Installation GuideOfficial installation documents for setup and deployment.

Configuration GuideOfficial configuration and feature reference.

Deployment Support

Optional setup guidance and after-sales support available from Star-Link Group.

Deployment Planning

Clear product positioning helps installers choose the right industrial switch and power supply for each site.

Resource Ready

Official documents are linked for installation, configuration and maintenance reference.

Project Support

Star-Link Group can help with product selection and deployment planning.

Available project support from Star-Link Group:

Free remote configuration is available for your first project and for projects involving three or more devices. Complimentary training is also available if required. Appointments are essential for all configuration and training sessions.

Note: Setup guidance and pre-configuration service are provided by Star-Link Group and are not built-in product features. Please email support@star-link.net.au if you would like to discuss your setup.

Weight	1.86 kg
