Ruijie Reyee RG-EG105G-P-V3, 5-Port Cloud Managed POE Router

Ruijie Reyee RG-EG105G-P-V3, 5-Port Cloud Managed POE Router - Image 2

Ruijie Reyee RG-EG105G-P-V3, 5-Port Cloud Managed POE Router - Image 3

Ruijie Reyee RG-EG105G-P-V3, 5-Port Cloud Managed POE Router - Image 4

Ruijie Reyee RG-EG105G-P-V3, 5-Port Cloud Managed POE Router - Image 5

Ruijie Reyee RG-EG105G-P-V3, 5-Port Cloud Managed POE Router

List price $253.34 inc GSTTradie? Apply for Trade Price. Approved accounts can see Trade Price and Tradie Specials after login.

(0 customer reviews)

5 Gigabit Ports, 4 PoE+ Out, 100 Users, 600Mbps, 32MB Flash

Unified Features with Upgraded Flash Storage
User-friendly configuration and easy to use

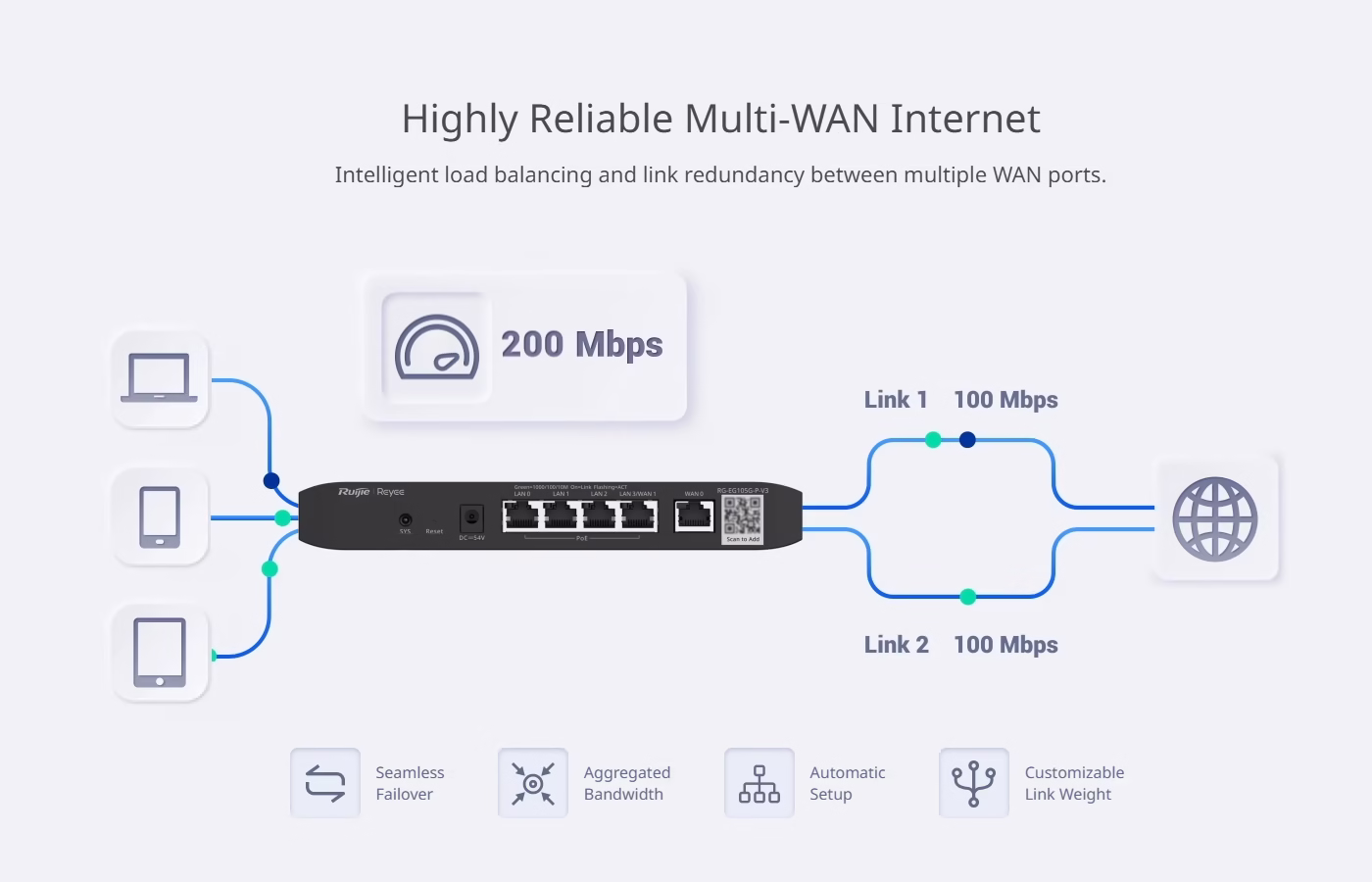

High reliability and load balancing through WAN ports

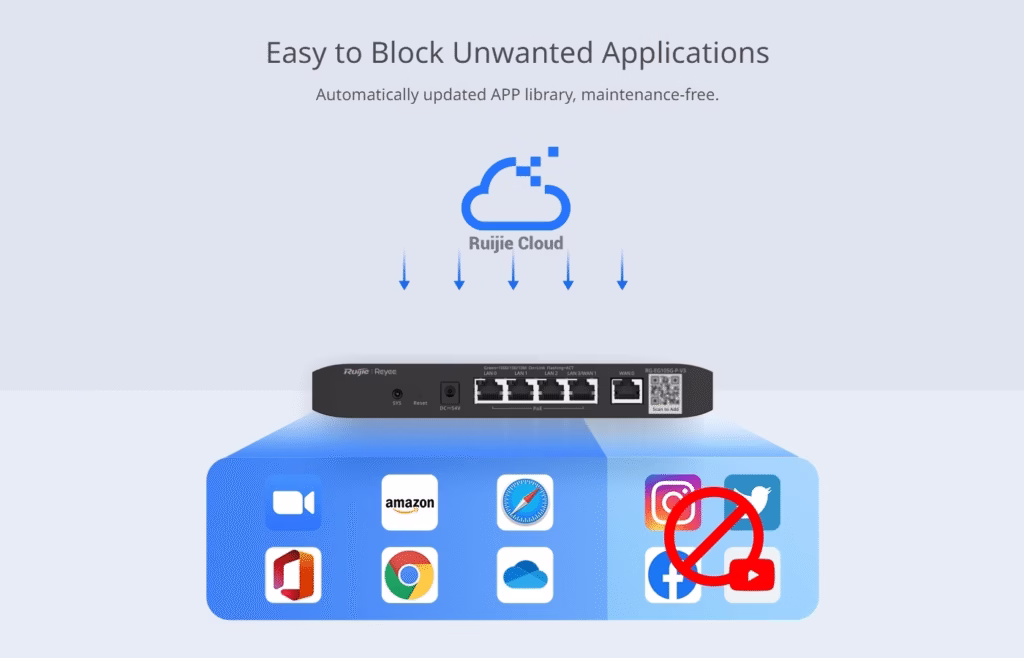

Easy to block unwanted applications with automatically updating library
Customized portal page, what you see is what you get (WYSIWYG)
Secure access to internal devices remotely

Availability: 29 in stock

Add To Wishlist

SKU: RG-EG105G-P-V3 Categories: Reyee, Smart WiFi Routers Tags: Cloud Managed, Gateway Router, Self-organizing networks

Loading...

Key Specification

Number of 10/100/1000BASE-T ports	5	Number of fixed LAN ports	3
Number of fixed WAN ports	1	CPU	Dual-core processor, 880 MHz clock frequency per core
Flash memory	32 MB	RAM	128 MB
PoE budget	54 W	Product dimensions (W x D x H)	206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.)
Weight	0.406 kg (0.9 lbs)	Mounting options	Desk
Operating temperature	0°C to 40°C (32°F to 104°F)	Recommended number of concurrent clients	100
Throughput	1000 Mbps (Turbo Mode) 600 Mbps (Normal Mode)

Feature Images

Official product promotional feature images.

RG-EG105G-P-V3 promotional feature image 1

RG-EG105G-P-V3 promotional feature image 2

Product Video

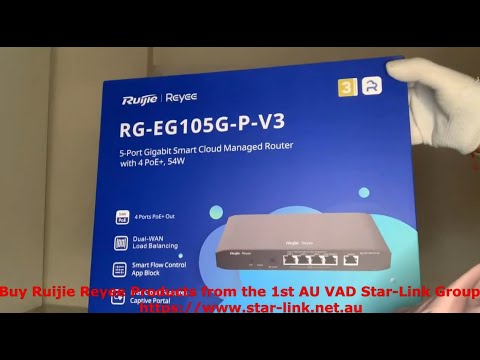

Open box video for Ruijie Reyee RG-EG105G-P-V3, 5-Port Cloud Managed POE Router.

RG-EG105G-P V3 Open Box Video

Product Resources

Product DatasheetOfficial product datasheet and technical documentation.

Installation GuideOfficial installation documents for setup and deployment.

User GuideOfficial user guide and configuration reference.

Deployment Support

Optional setup guidance and after-sales support available from Star-Link Group.

Deployment Planning

Clear product positioning helps installers choose the right device for each site.

Resource Ready

Official documents are linked for setup, firmware and maintenance reference.

Project Support

Star-Link Group can help with product selection and deployment planning.

Available project support from Star-Link Group:

Free remote configuration is available for your first project and for projects involving three or more devices. Complimentary training is also available if required. Appointments are essential for all configuration and training sessions.

Note: Setup guidance and pre-configuration service are provided by Star-Link Group and are not built-in product features. Please email support@star-link.net.au if you would like to discuss your setup.

Weight	1.2 kg
Dimensions	30.8 × 25.7 × 6.3 cm
Radio	Dual-stream dual-band
Protocol	Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands	802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz, 802.11b/g/n: 2.4G ~ 2.4835GHz
Antenna	Array antennas (2.4G: 2dBi, 5G: 2dBi)
Spatial Streams	2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput	1.267Gbp per AP, Up to 400Mbps at 2.4G, Up to 867Mbps at 5G
Modulation	DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps, MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM, Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
Receiver Sensitivity	11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps), 11ac HT20: -83dBm (MCS0), -57dBm (MCS9), 11ac HT40: -79dBm (MCS0), -57dBm (MCS9), 11ac HT80: -76dBm (MCS0), -51dBm (MCS9), 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps), 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@ MCS15
Maximum Transmit Power	2.4~2.4835GHz: ≤20dBm (EIRP), 5.150~5.350GHz: ≤20dBm (EIRP), 5.725~5.850GHz: ≤20dBm (EIRP)
Adjustable Power	1dBm
Dimensions	194mm×194mm×35mm (excluding mounting kits)
Weight	0.45kg (excluding mounting kits)
Service Ports	2 10/100Base-T Ethernet ports, PoE/LAN1 port supports PoE, Service Ports 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port	NA
LED Indicator	Single indicator (green light)
Power Supply	Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Power Consumption	≤ 12.95W
Environment	Operating humidity: 5%~95% (non-condensing), Operating temperature: 0°C~40°C, Storage humidity: 5%~95% (non-condensing), Storage temperature: -40°C~70°C
Installation	Wall-mount, ceiling-mount
Safety Standard	GB4943, IEC 60950-1
EMC Standard	GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard	IEC61373
Radio Standard	SRRC certification, EN300 328, EN301 893
MTBF	>400000H
Operating Mode	AP mode and routing mode
WLAN	Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID, Maximum number of clients: 110, Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz), SSID-based and radio-based STA limit, Support Layer 2 user isolation, Support SSID hiding, Up to 8 SSIDs
Roaming	Support Layer 2 and Layer 3 roaming
Security	Support PSK authentication, Support static blacklist and whitelist, Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing	Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance	Support local management with web, Support local or remote management with Ruijie Cloud app, Support remote management with Ruijie Cloud platform, Support unified networking of all network equipment
Platform management features	Automatic RF adjustment via the platform, Unified configuration via the platform, Unified monitoring via the platform
