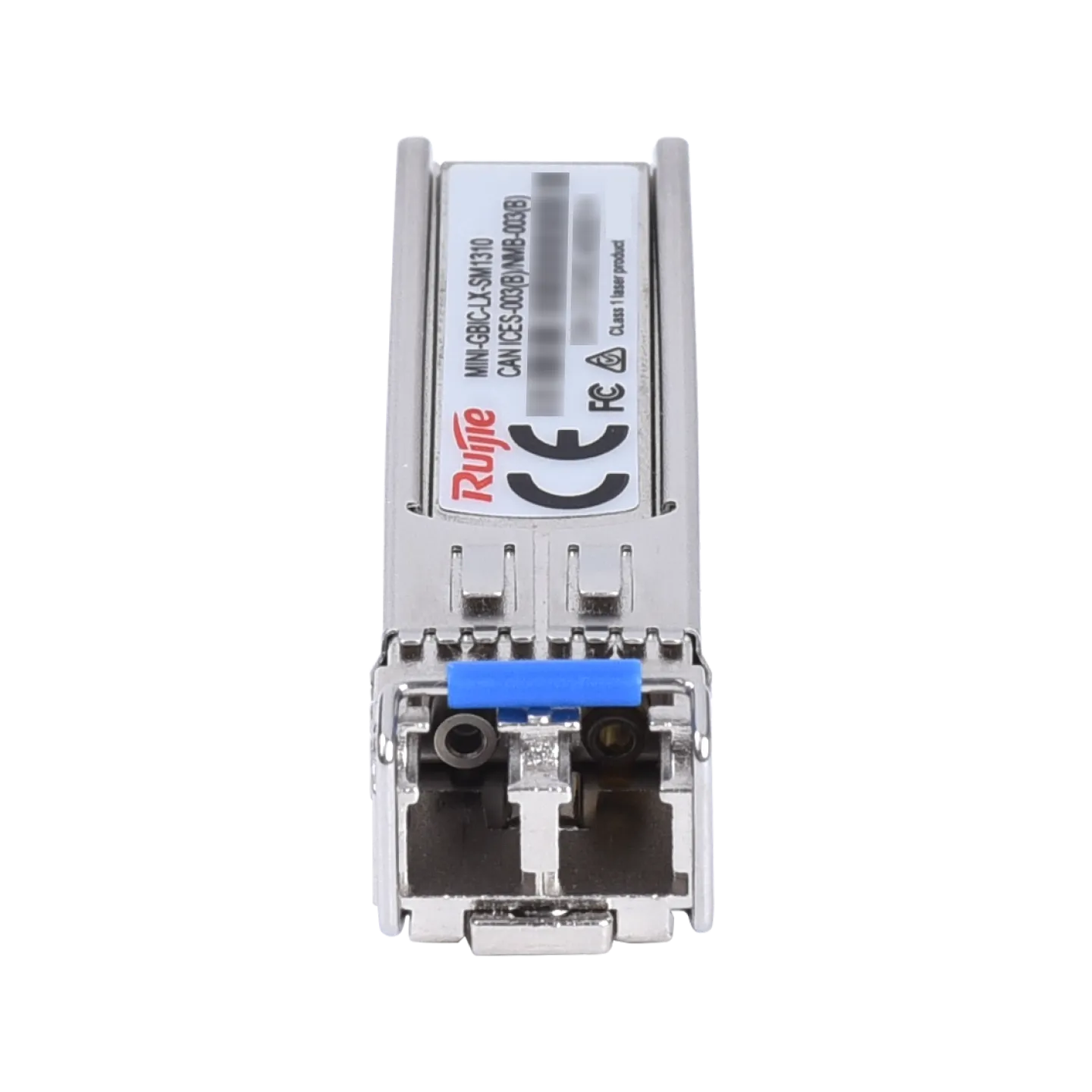

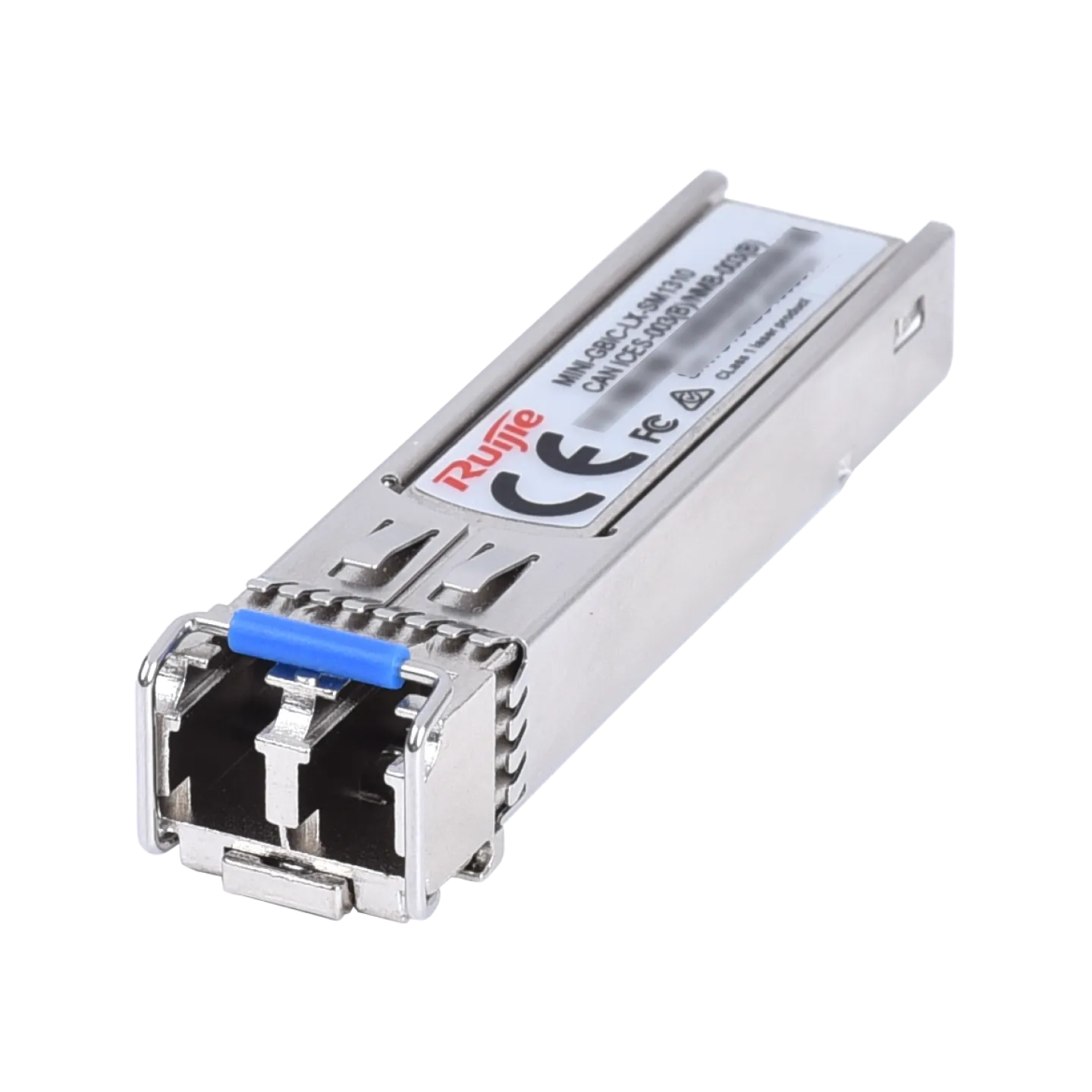

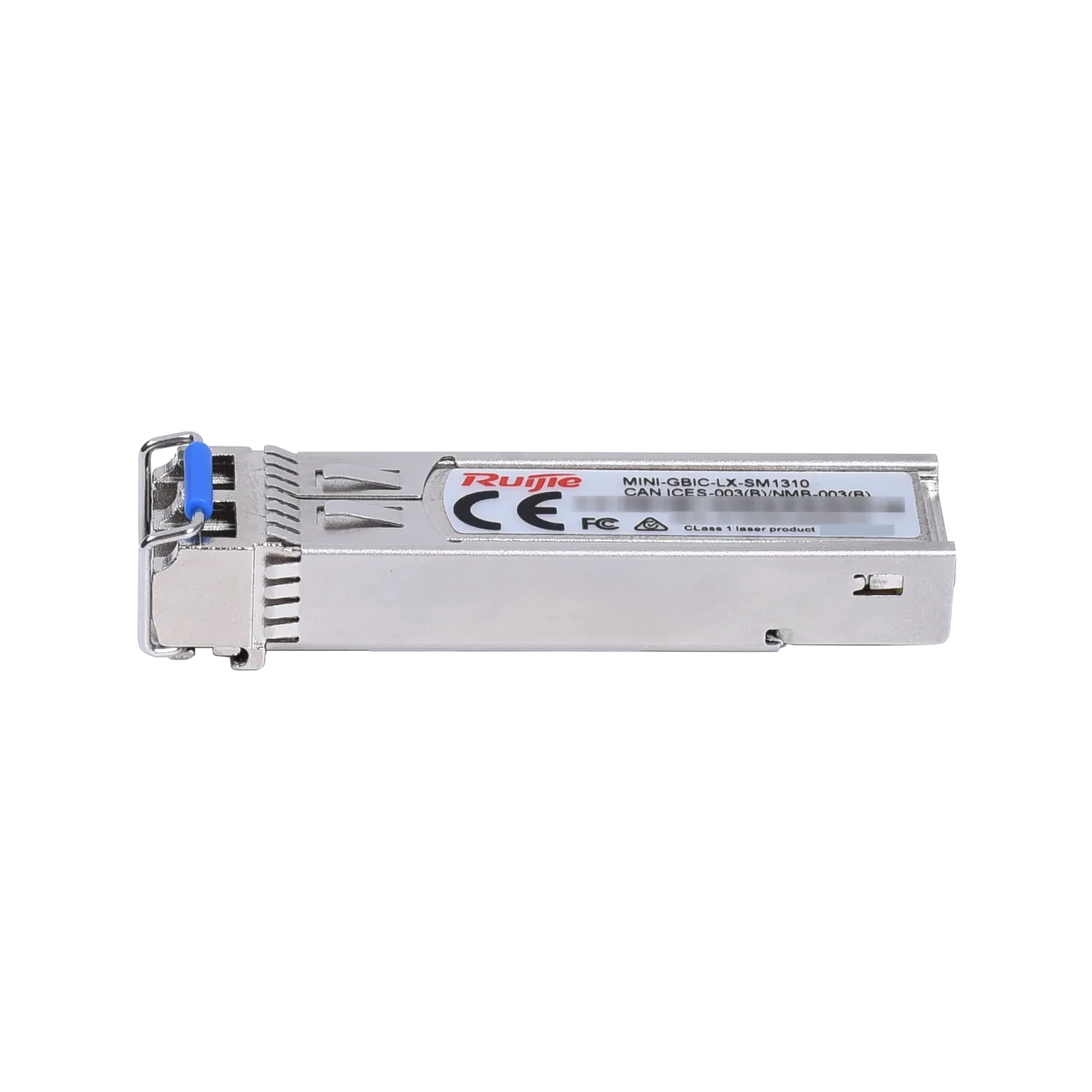

Ruijie MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module

$70.00+GST $77.00 INCL GST

Availability: 10

Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)

1G LX module, SFP form factor, LC, 10 km (32,808.40 ft.) over SMF

Highlight Features:

  • Max. power consumption 1.5 W
  • Hot pluggable SFP MSA compliant
  • Digital optical monitoring capability for strong diagnostic capabilities
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • Class 1 Laser safety and RoHS compliant

10 in stock

Free shipping for UNV Products purchased over $300 in one order.
SKU: MINI-GBIC-LX-SM1310 Category: Tags: , , , ,
Loading...

Description

The MINI-GBIC-LX-SM1310 is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up
to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at
a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA,
and RoHS standards.
